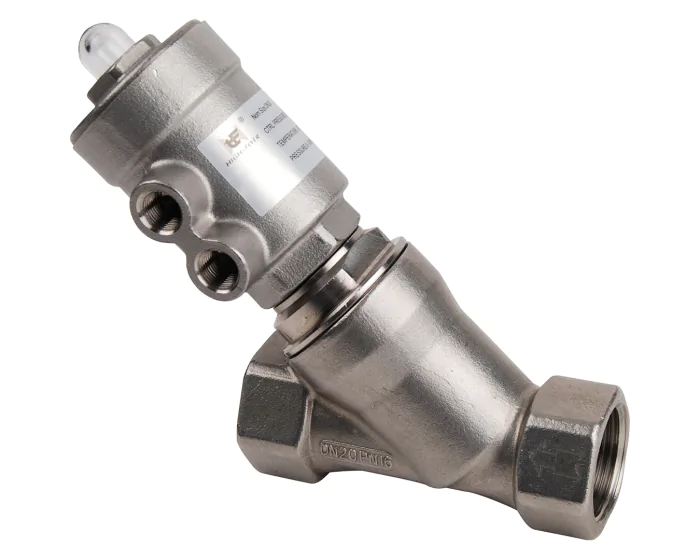

The HF 32L Type 1436 pneumatic valve is a full bore, normally closed (NC), all stainless steel angle valve for automatic shut-off of fluid systems.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 6 |
| ATEX compatible | No |
| DN | DN10 - 3/8'' |
| Gasket | PTFE/FKM |
| Kv (m³/h) | 4.70 |
| Body material | Stainless steel CF8M (1.4408) |
| Bearing | PTFE |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | BSP FF |
| Control head | 32 |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Flow entry | Below the seat |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN10 - 3/8'' | 1436303A | S1001747 |
€82.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' | 1436304A | S1001748 |
€89.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' | 1436305A | S1001749 |
€92.81
(excl. btw)
|
add to cart |
